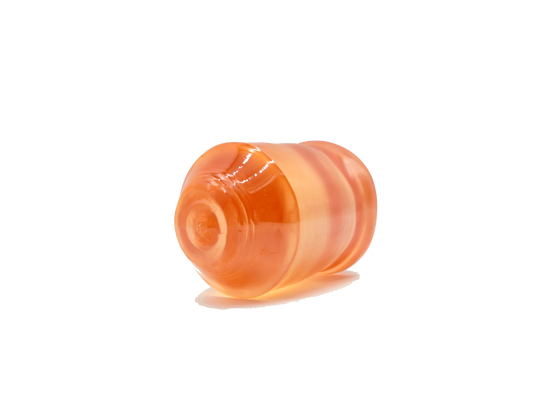

LaAlO3 Lanthanum Aluminate Single Crystal Substrate for High-Temperature Superconducting & Giant Magnetoresistance Thin Film
Lanthanum aluminum oxide (LaAlO3) is a high-temperature superconducting single-crystal substrate material. It is an excellent substrate material for the epitaxial growth of high-temperature superconducting thin films and giant magnetic thin films. Its superior dielectric properties make it suitable for the fabrication of low-loss microwave amplifiers and dielectric resonant devices.
| Size | Φ76.2mm |
| Thickness | 0.5mm or customer customization |
| Polishing | Double or single throwing |
| Crystal optics | <100>,<110>,<111> |
| Surface Roughness Ra | Ra≤1nm |
| Crystalline precision | ±0.2° |
| Positioning edge accuracy | 2° (customizable within 1°) |
Lanthanum aluminate (LaAlO3) single crystal is a kind of industrial, large-size HTS thin film substrate single crystal material. LaAlO3 crystal matches well with many kinds of perovskite structure materials, and is the substrate material for epitaxial growth of high temperature superconducting films and giant magnetoresistance films. At the same time, lanthanum aluminum crystals have a low dielectric constant and good microwave dielectric performance, so they are suitable for low-loss microwave amplifier devices and dielectric resonance applications.
Main characteristics:
Low dielectric loss
The lattice matches well
Small coefficient of thermal expansion
Good chemical stability
Good thermal stability
Typical applications:
High-temperature superconducting thin film extension substrate
Giant magnetic film outer lining
Microwave amplification and dielectric resonance
|
|
