| ブランド名: | Crystro |
| モデル番号: | PCR-2026-13-01 |
| 配達時間: | 3～4週間 |
| 支払条件: | T/T、ウェスタンユニオン、マネーグラム、ペイパル |

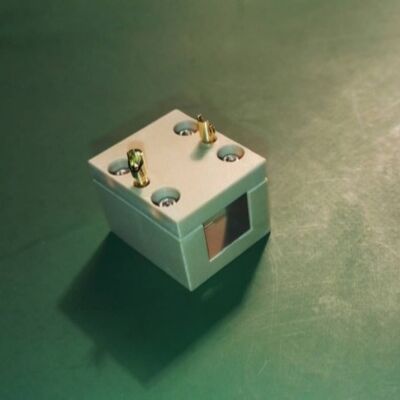

LN (LiNbO3) Pockels Cells – High Electro-Optic Coefficient, Low Half Wave Voltage, High Damage Threshold, AR Coated, for Q-Switch, Phase Modulator, Laser Communication & Industrial Laser Systems
LN (LiNbO3) Pockels Cell, is a comprehensive and excellent pockels cell.The device is widely used in optical communication and optical waveguide technology and other fields. It features high electro-optical coefficient, non-hygroscopicity, wide transparency range, and excellent mechanical and physical properties, making it suitable for applications such as electro-optical modulators, modulated resonator wave voltage external laser beams, etc.
| Clear aperture | Shell Size | Half-wave lambda/4 Voltage | |
| CPMLPC-09-1064nm-Q | 9mm | Dia.30mm x L26mm | 2100V λ/4 at 1064nm Electro-optic Q-Switching |
| CPMLPC-09-1064-Q-S | 9mm |

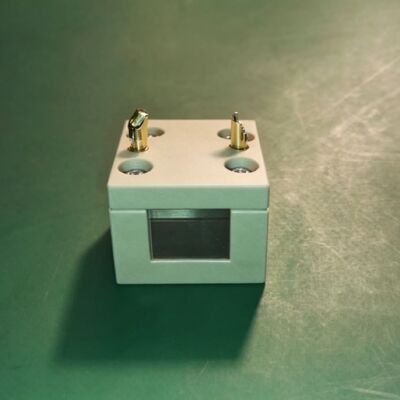

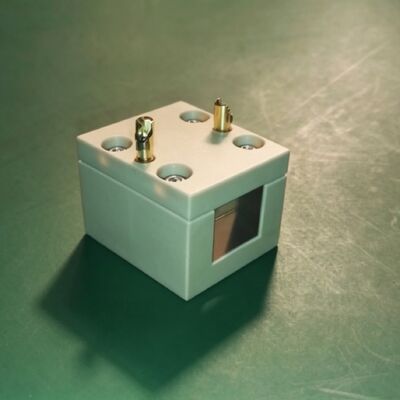

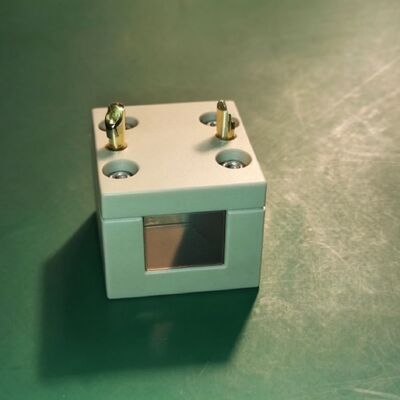

Square design 18 x 17 x 20mm |
2100V λ/4 at 1064nm Electro-optic Q-Switching |
| CPLNPC-090925-3031-1064 | 9mm | Dia.30 x 31mm |
1700V λ/4 at 1064nm Electro-optic Q-Switching |
| Transmittance | >98% | Transmission distortion of the crystal | λ/6 @ 633nm |
| Insertion Loss | 2% | Crystal Flatness | λ/8 @ 633nm |
| Recommended Q switched Output Energy | 100 mJ | Extinction Ratio | 300:1 - 500:1 |
| Capacitance | 5pF | X surface with Au/Cr electrode | |
| Damage Threshold | 00 MW/cm2 1064nm 10ns 10Hz (LN Q Switch |
Lithium niobate crystal is one of the most commonly used materials for Q-switches and phase modulators due to its high electro-optical coefficient, non-hygroscopicity, good transmission up to 4.0 µm, and transverse mode operation.
By applying an electric field transverse to the direction of light propagation, the LiNbO3 cell can be configured to operate at a lower voltage than KD*P cells. The LiNbO3 Pockels Cell supports infrared wavelength operation up to 4.0 µm, making it an excellent choice for low-to-medium power solid-state laser (Er:YAG, Ho:YAG, Tm:YAG pulsed lasers) applications. Meanwhile, compared with conventional undoped LiNbO3, MgO-doped LiNbO3 has a significantly higher damage threshold.
Features
High-Speed Modulation Capability
Wide Transmittance Range
Low Driving Voltage
Excellent Physicochemical StabilityLN (LiNbO3) Pockels Cell
